Rear Brake Drum

1. Basic Part Information

• Part Name: Rear Brake Drum

• Part Code: HD90009340671

• Brand/Manufacturer: HANDE AXLE (logo clearly visible in the upper right corner). Hande Axle is a leading manufacturer of commercial vehicle drive axles in China.

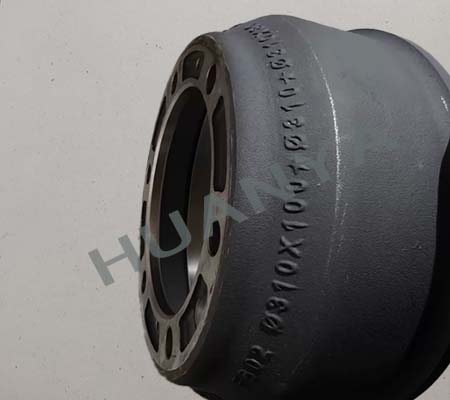

• Appearance Features:

  • Made of gray cast iron (e.g., HT250 or similar), with a dark black outer surface and a precision-machined inner surface (silvery-white metallic luster) for friction with brake shoes to generate braking force.

  • Features bolt holes on the outer circumference for mounting the wheel.

  • Bowl-shaped structure with a flange on one side.

2. Applicable Models & Installation Position

• Applicable Models: Mainly suitable for light and medium trucks equipped with Hande Axles, as well as other brands using Hande axles:

  • Shaanxi Heavy Duty Truck / Light Truck: e.g., Shaanxi Delong K3000, Shaanxi XuanDe X9 (rear axle).

  • Other Compatible Models: Foton Ouhui, Foton Ollin (some configurations with Hande axles), Sinotruk HOWO light trucks, FAW Jiefang light trucks, etc.

• Installation Position: Mounted on the outer side of the wheel hub on the drive axle (rear axle). It is a key component of the drum brake system.

3. Main Functions & Role

• Braking Friction: When the driver presses the brake pedal, the brake chamber pushes the brake shoes to expand, pressing the friction linings firmly against the inner cylindrical surface of the brake drum. The resulting friction slows down or stops the wheel, enabling vehicle deceleration or parking.

• Heat Dissipation & Wear Resistance: As a wear part, the material must offer good wear resistance and adequate heat dissipation to withstand the high temperatures and wear caused by heavy-load driving and frequent braking.
