Sinotruk MAN Engine PTO High-Pressure Oil Pump Assembly

1. Basic Part Information

• Part Name: PTO High-Pressure Oil Pump / Power Take-Off High-Pressure Oil Pump

• Applicable Vehicle/Engine:

  • Brand: Sinotruk Genuine Part

  • Engine Platform: Primarily used on MAN engine series, including MC11, MC13, MC07, and other models.

• Appearance Features:

  • Pulley: A black multi-ribbed pulley on the left side, driven by the engine crankshaft belt.

  • Gear Structure: Exposed gears visible in the middle section (typically drive gears or pump internal gears) for power transmission.

  • Valve Body & Ports: The pump body on the right side features oil inlet/outlet ports and mounting brackets.

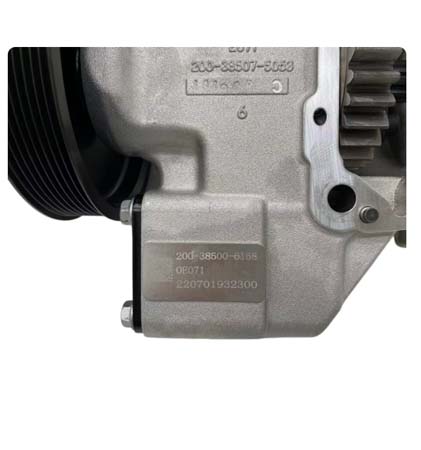

  • Identification/Marking: Cast markings such as "E0071" and part numbers (e.g., 200-35307-3053) are present — typical characteristics of Sinotruk MAN engine parts.

• Common Part Numbers:

  • 200-35307-3053: Common part number for MAN engine PTO high-pressure oil pump

  • 082V-355-00-00: Part number for some early or specific versions of the PTO pump

  • 080V-355-00-00: Variant for specific engine power ranges

2. Function & Role

• Power Take-Off (PTO): The primary function of the PTO high-pressure oil pump is to convert engine power (via the pulley and gears) into hydraulic energy — outputting high-pressure oil to drive auxiliary equipment such as water pumps, hydraulic pumps, mixer drums, etc.

• High-Pressure Oil Supply: Unlike the low-pressure fuel supply pump in the engine's main fuel system, the PTO high-pressure oil pump is specifically designed to deliver high-pressure oil (typically 10 MPa to 30 MPa or higher) to meet the working pressure requirements of hydraulic systems.

• Independent Control: The PTO oil pump typically operates independently of the engine's main fuel system. Its start/stop and displacement can be regulated via solenoid control valves or mechanical linkages, enabling on-demand oil supply.

• High Efficiency & Reliability: Using gear pump or piston pump construction, it features a compact design, high pressure capability, stable flow, and wear resistance — suitable for demanding heavy-duty truck applications under complex operating conditions.

3. Common Failures & Maintenance

• Low Pressure: Gear wear, aging seals, or blocked oil passages can cause reduced output pressure, affecting PTO operation.

• Abnormal Noise: Bearing damage, poor gear meshing, or air entrainment in the hydraulic fluid can produce unusual noises.

• Oil Leakage: Aging pump body seals or loose bolts can lead to high-pressure oil leaks — requiring timely seal replacement.
